高階螢光光譜儀│Time-Resolved Photolumenescence spectrofluorometer (TRPS)

最高階的入門款

▸時間解析光激發螢光 (Time-Resolved Photoluminescence,TRPL)

▸五種實驗模式一機滿足

> Steady State Fluorescence
> Fluorescence Lifetime (TCSPC)
> Phosphorescence Lifetime (MCS)
> Spectral Coverage into the Near-Infrared
> Polarisation and Anisotropy (POL)

▸具備高規格的訊噪比(S/R)= 10000 : 1

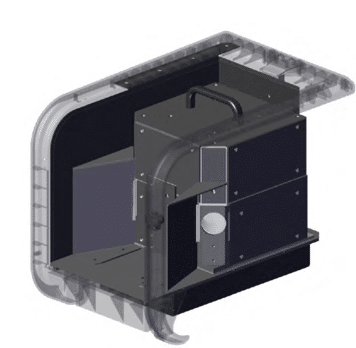

▸同級唯一內置式150 mm積分球

▸同級最長光譜量測範圍至1650 nm

具備高感度的螢光光譜儀

  • 除了標準可見光偵測器之外,預留額外的偵測器孔位,方便使用者日後升級。
  • 水拉曼(water Raman)訊造比:6000:1,提供高感度、高靈敏度的設備效能。
  • 隨插即用(Plug & Play)多種量測模式,使用者在不同量測方式之間切換更便利。

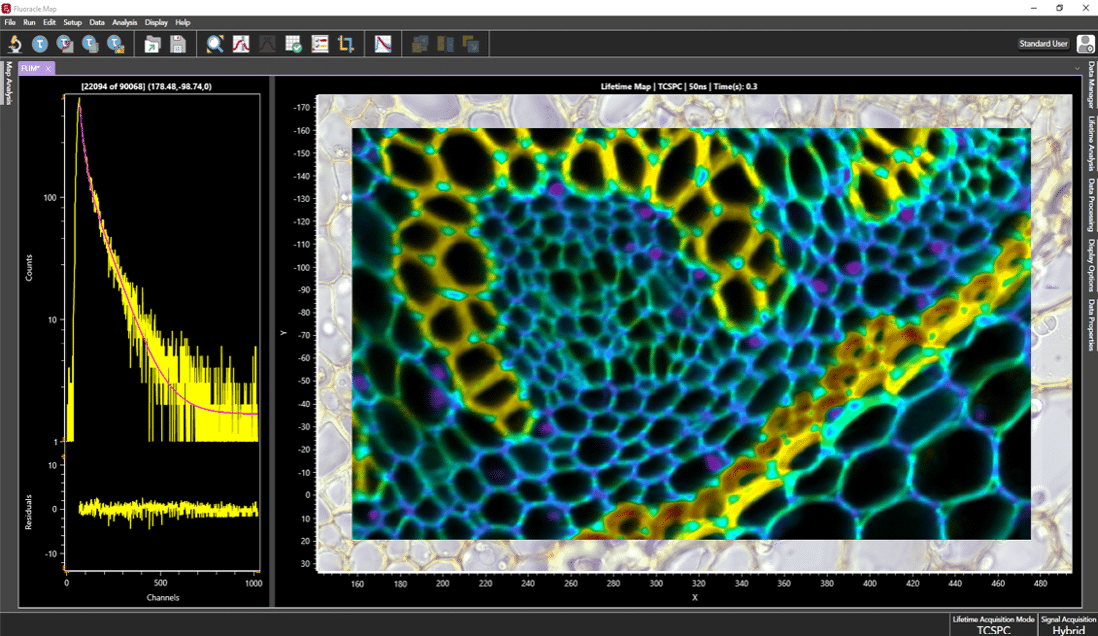

  • 整合式軟體設計,軟體整合參數控制、光譜收集、光譜處理、報告列印等功能。
  • 所有光譜處理皆在同一個視窗進行,不需要額外多開附屬軟體。

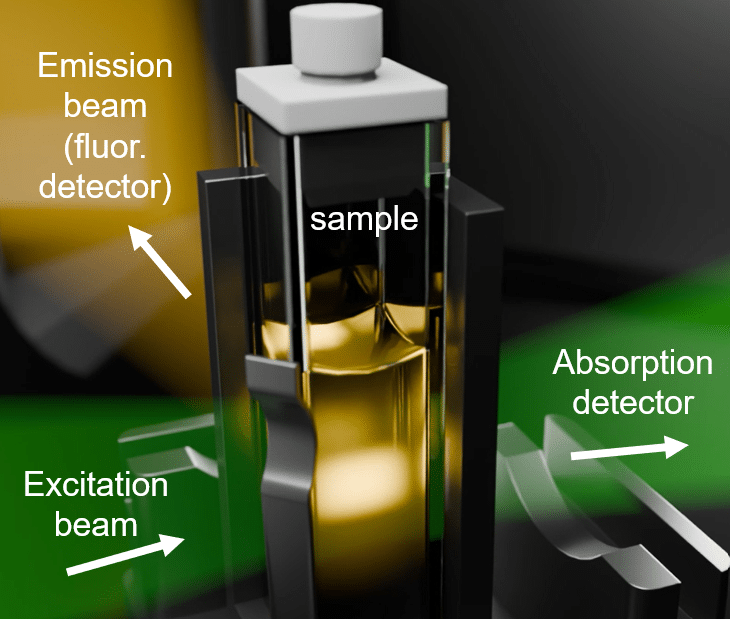

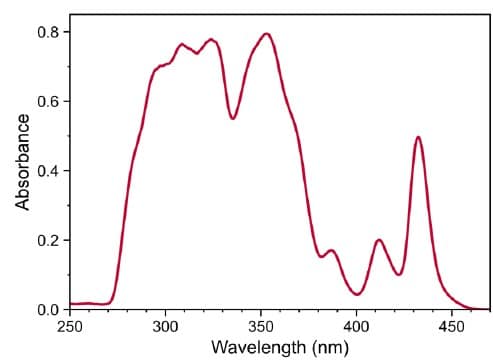

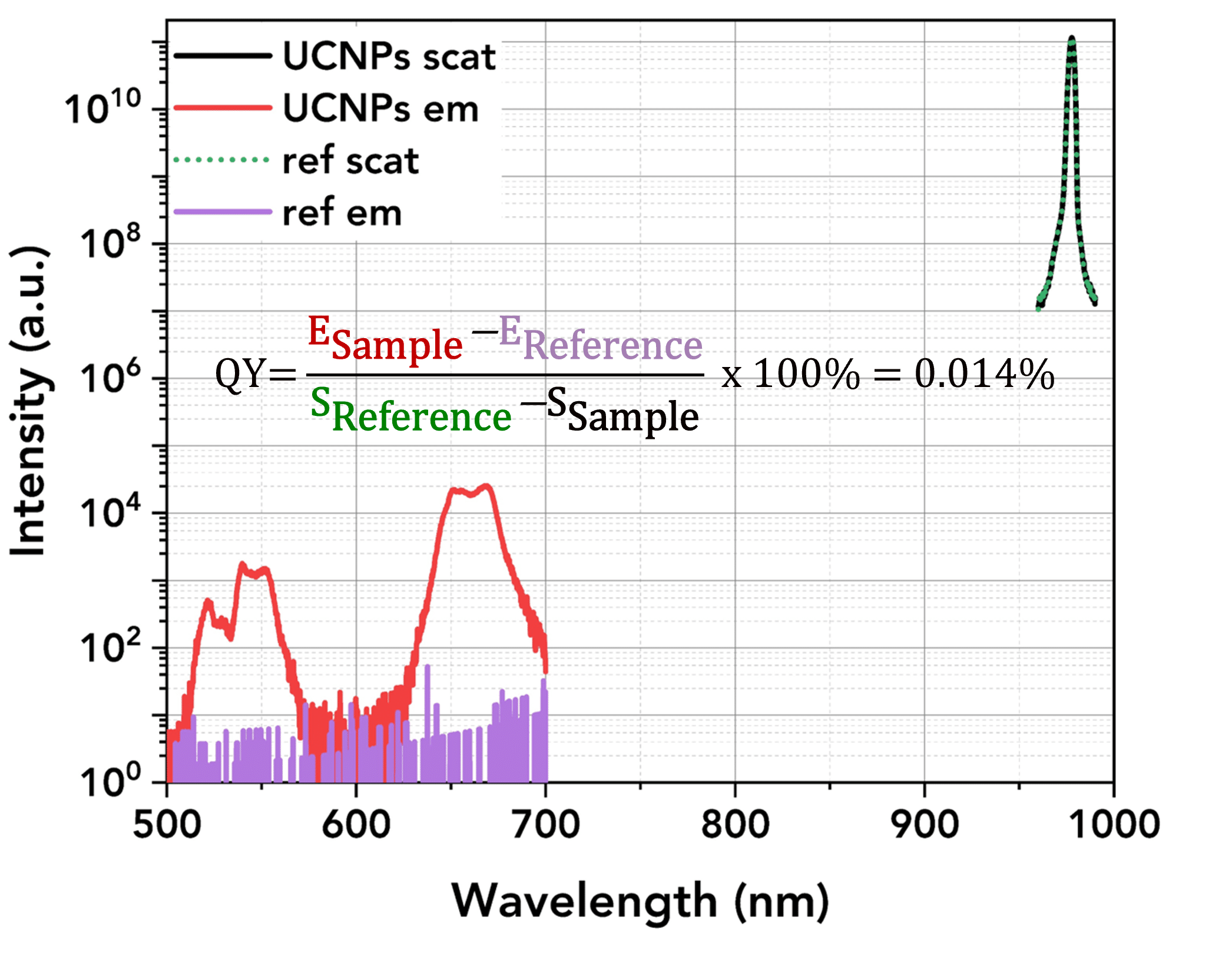

  • 吸收光譜(Absorption spectra)量測、色度座標(Chromacity coordinates)計算、絕對量子產率(Absolute Quantum Yield)計算等實用軟體功能。

可進行升級:

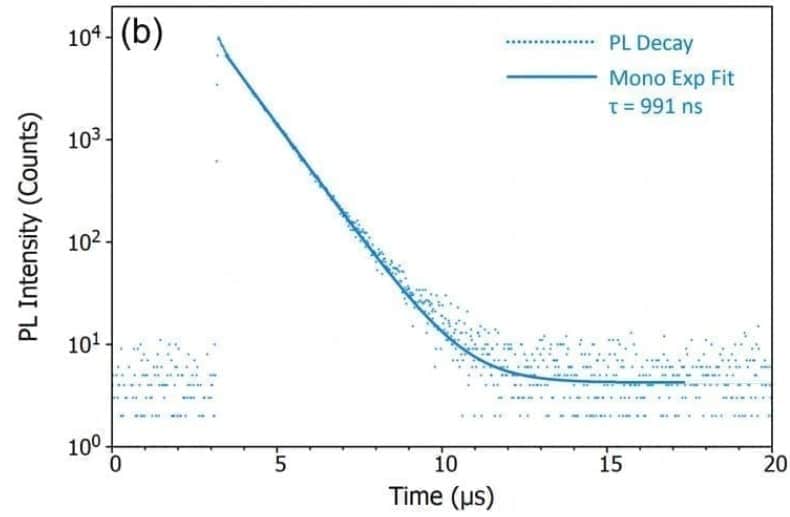

  • 時間解析(Time-Resolved)光致螢光/磷光光譜量測。

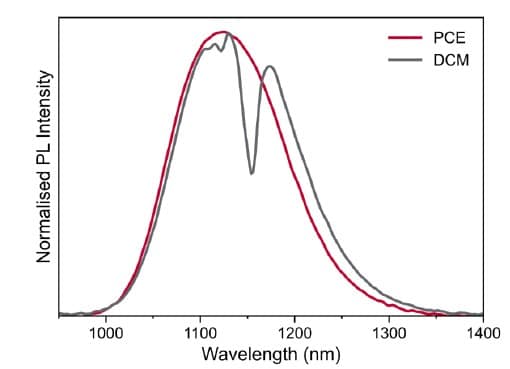

  • 擴充至最遠1650 nm的光譜範圍,提供近紅外光譜分析能力。
  • 偏振各異向性螢光量測,適合蛋白質結構分析。

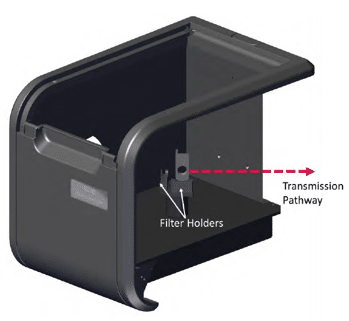

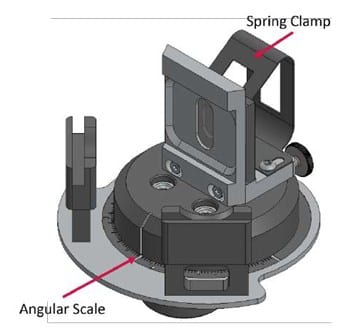

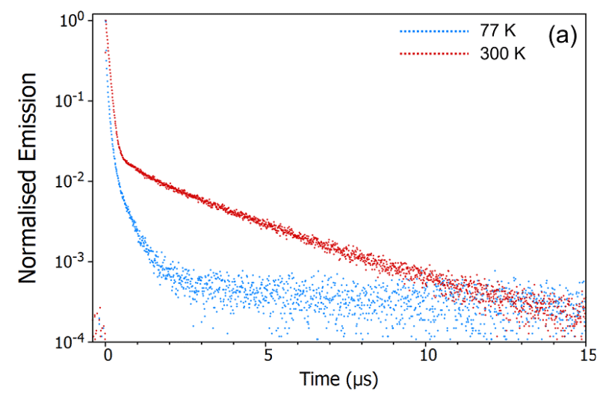

  • 多種樣品量測模組,包含變溫控制、積分球量測與電致發光量測模組。


Application list and corresponded measurement type and accessory

原廠應用文件列表與相對應的量測方式與所使用的配件

 AN16

Red-edge excitation spectroscopy of proteins with the FS5 spectroflurometer

FS5

Emission spectra

 AN17

Fluorescence spectroscopy of Wine

FLS980

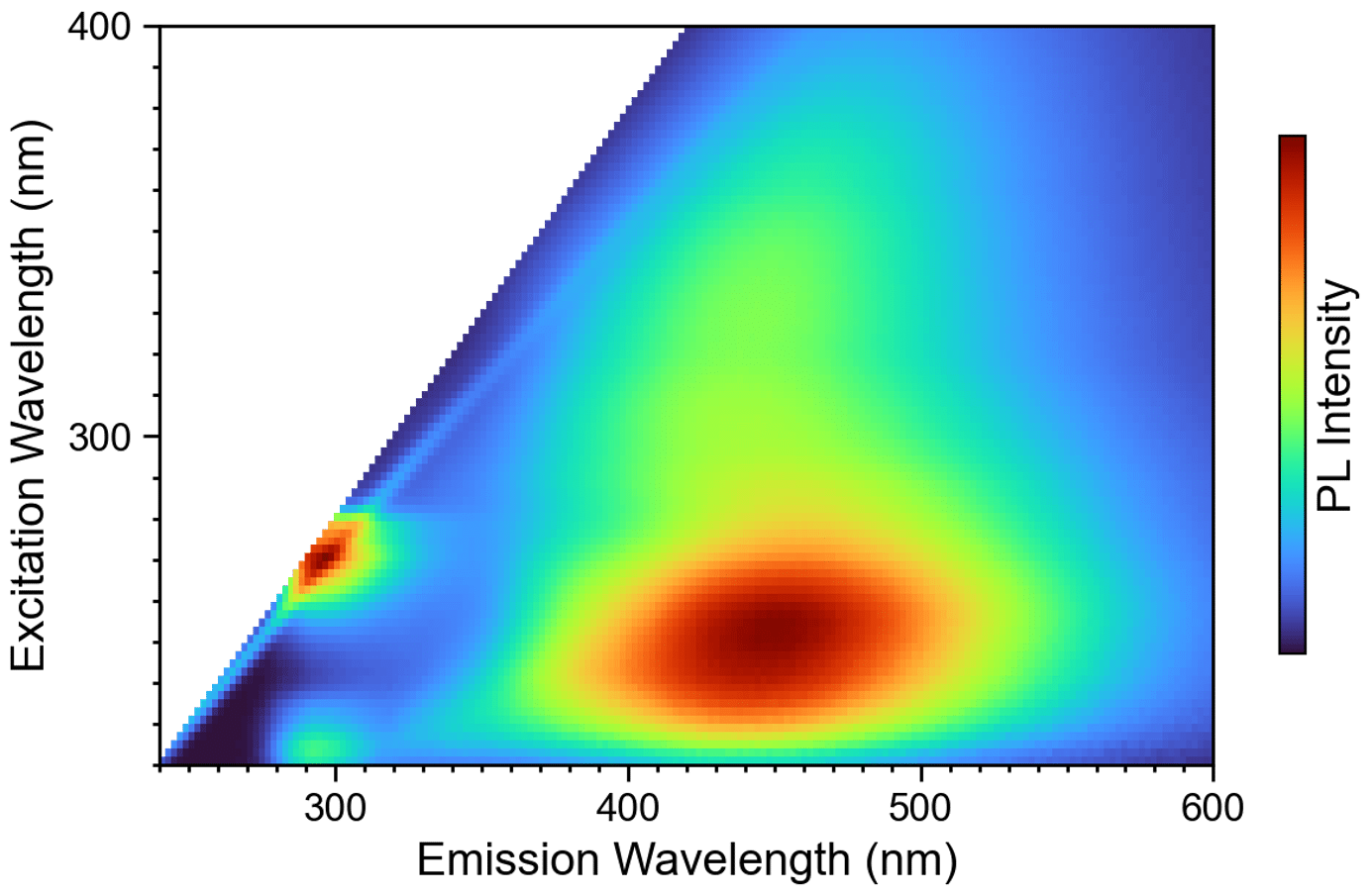

Excitation-Emission Map

Time-resolved emission(Decay curve)

 AN18

Characterisation of up-conversion in rare earth materials

FLS980

Emission/Excitation spectra

Time-resolved emission(Decay curve)

 AN19

Absolute quantum yield of UV to NIR emitting sample

FS5

Integrating sphere

Emission spectra

 AN20

Lanthanide-based up-conversion materials

FS5

Emission spectra

Time-resolved emission(Decay curve)

 AN21

Lipid-protein interactions revealed by fluorescence spectroscopy

FLS980

Emission spectra

 AN22

Ligand binding assay on the basis of fluorescence anisotropy

FLS980

Polarised emission spectra

 AN23

Photo-physical properties of ancient and modern artwork pigments

FLS980

Emission/Excitation spectra

 AN24

Excitation-emission spectroscopy of single-wall carbon nanotube

FLS980

Excitation-Emission Map

 AN26

Photoluminescence and electroluminescence of organic solar cell

FLS980

Emission/Excitation spectra

Time-resolved emission(Decay curve)

Electroluminescence spectra

 AN28

Kinetic of persistent luminescence phosphors

FLS980

Emission/Excitation spectra

Persistent luminescence decays

 AN30

Water quality by monitoring the natural organic matter of acquatic system

FS5

Excitation-Emission Map

 AN33

Application of time resolved fluorescence techniques to FRET based immunoassay



Förster resonance energy transfer

 AN35

Charge carrier recombination dynamics of semi-conductor photocatalysts

FLS980

Time-resolved emission map

 AN36

Excitation-Emission spectroscopy with charge coupled detectors

FLS980

Excitation-Emission Map

 AN38

Temperature dependence of phosphors via photo themo luminescence

FLS980

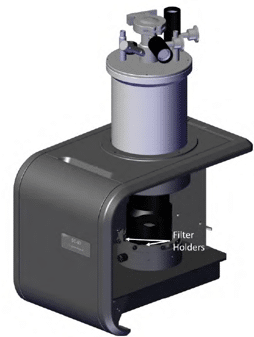

Nitrogen-cooled cryostat

 AN39

Study of Fluorescence quenching kinetic using stopped-flow

FLS980

Emission/Excitation spectra

Time-resolved emission(Decay curve)

 AN40

Measuring charge carrier lifetime in Halide Perovskite using Time-resolved photoluminescence spectroscopy

FLS980

Emission/Excitation spectra

Time-resolved emission(Decay curve)

 AN43

Temperature-dependent quantum yield of fluorescence from plant leaves

FLS980

Variable temperature cryosphere

Emission spectra

 AN44

Photoluminescence Spectroscopy of a white light emitting Perovskite

FLS1000

Emission spectra

Chromacity plot(CIE coordinates)

Time-resolved emission(Decay curve)

 AN45

Observing phase transition in a Halide Perovskite using temperature dependent photoluminescence spectroscopy

FLS1000

Nitrogen-cooled cryostat

Emission spectra

 AN46

Temperature-dependent absolute photoluminescence quantum yield ,easurement of a Halide Perovskite

FLS1000

Variable temperature cryosphere

Emission spectra

 AN49

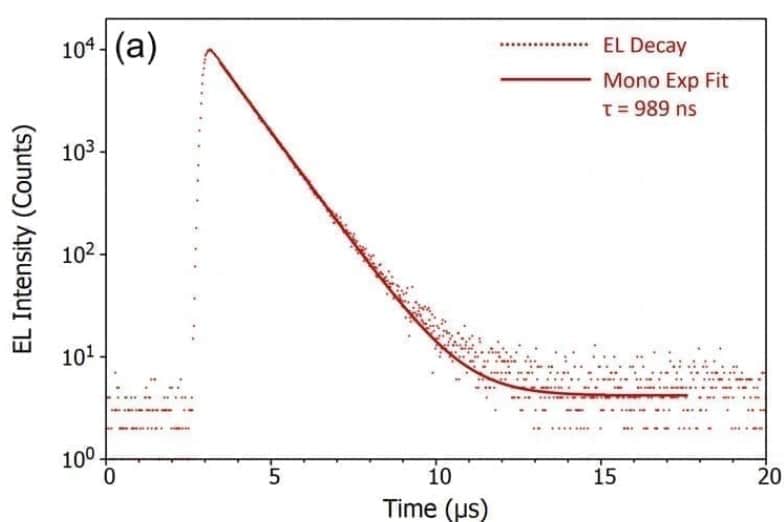

Time-resolved Electroluminescence spectroscopy of a white light emitting diode

FLS1000

Electroluminescence

Chromacity plot(CIE coordinates)

Time-resolved Electroluminescence

 AN50

Determination of chromaticity coordinate and bandgaps of III-V LEDs using Electroluminescence Spectroscopy

FS5

Electroluminescence

Chromacity plot(CIE coordinates)

 AN52

Luminescence Thermometry with Up-conversion materials

FLS1000

Temperature emission map

Temperature lifetime map

 AN55

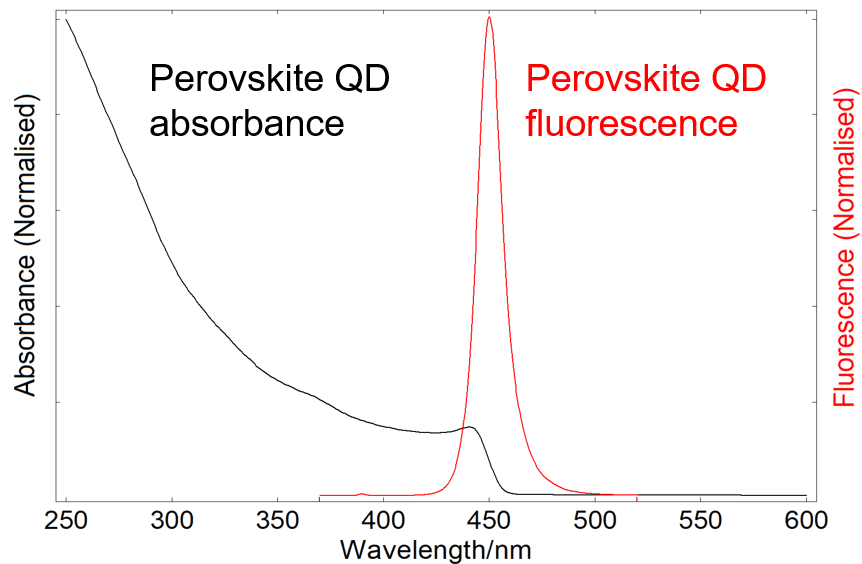

Photophysical Characterisation of Perovskite quantum dots

FS5

Absorption/emission spectra

Chromacity plot(CIE coordinates)



Integrating sphere(absolute quantum yield)

Time-resolved emission(Decay curve)
